Motorola Solutions

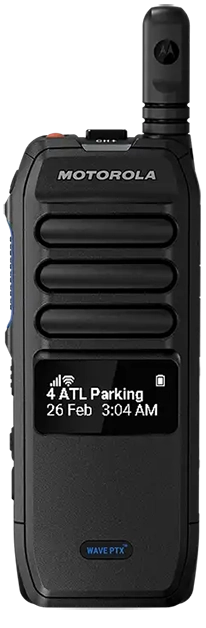

TLK 200
The TLK 200 is a rugged broadband push-to-talk radio built for crews who can't afford to lose contact. It moves between carrier networks on its own, cuts through background noise, and runs well past a full shift on one charge. Add the SafeGuard package to get automatic fall detection, lone worker check-ins and priority emergency calling, so your team stays protected wherever the job takes them.
Performance Characteristics
Powered by: WAVE PTX
Network
4G LTE, FDD bands B2, B4, B5, B7, B12, B13, B17, B66
Channel capacity
96 channels
Contact list
1,000 contacts
Standard battery chemistry type:
Li-ion, 2500 mAh (PMNN4578)
Battery life (based on a 5-5-90 duty cycle):
18 hours
Encryption
AES-256
Physical Characteristics
Dimensions H x W x D (without antenna)
5.47" x 2.17" x 0.94" (139mm x 55mm x 24mm)
Dimensions H x W x D (with antenna)
6.94" x 2.17" x 0.94" (176.4mm x 55mm x 24mm)
Weight (with battery)
6.79 oz (192.6g)
Display
2.5-line monochrome display
Housing
Antimicrobial
Charging port
USB Type-C
Audio jack
2.5mm with mechanical lock
User Environment
Operating temperature
-20ºC to 60ºC (radio) / -10ºC to 60ºC (with battery)
Storage temperature
-40ºC to 85ºC
Mil spec
810C, D, E, F, G, H
IP Standards
IP67
Coverage Without Compromise
- Multi-carrier MVNO SIM that connects to the strongest available network
- Automatic switch to the next strongest network if the signal drops
- Wi-Fi calling over 2.4 + 5 GHz networks
- North American roaming across the US, Canada and Mexico (SafeGuard)
- Voice messaging for updates that don't need a live call
- Call fallback that turns a missed PTT call into a recorded message
Clear Audio In Loud Places
- Most advanced noise suppression of any TLK device
- Integrated wideband speaker
- Upgraded processor, expanded memory and increased storage
- Open Bluetooth pairing for wireless earpieces and audio accessories
Tough Enough For Every Shift
- 18-hour battery life
- IP67 and MIL-STD-810 rated
- Glove-friendly, ergonomic design
- 2.5-line monochrome display
- Antimicrobial housing for shared devices
Safety Built In
- Dedicated emergency button
- Emergency Calling and Alerting (SafeGuard)
- Remote emergency activation by dispatch (SafeGuard)
- Fall Alert (SafeGuard)
- Lone Worker (SafeGuard)
Location And Device Management
- GPS, GLONASS, Galileo, BeiDou and A-GNSS location tracking
- Location-based talkgroups (SafeGuard)
- Channel lock for supervisors and safety officers
- Room-level, multi-floor indoor location with Location Tech integration
- Centralized provisioning, remote software updates and talkgroup setup via the WAVE PTX Admin Portal
- Interoperable with smartphones, tablets and MOTOTRBO radios via WAVE PTX™
- WAVE PTX dispatch compatible
3-Year Warranty
- 3-year hardware repair for manufacturing defects
- Software updates for the latest features and security
- Dedicated technical support, Monday to Friday (8x5)
Specifications
- Network: 4G LTE
- Channel Capacity: 96 Channels
- GPS: GPS, GLONASS, Galileo, BeiDou, A-GNSS
- Wi-Fi: 802.11 a/b/g/n/ac 2.4/5.0 GHz, WPA2/WPA3
- Bluetooth: 5.0 LE
- SIM: 1x 4FF Nano SIM
- Sensor: Accelerometer
- Audio Output: 1W / 3W
Brochures
Fact Sheets
Spec Sheets
Use Case Brief
Add accessories that fit the way you work, from wireless earpieces and discreet audio to holsters, belt clips and bulk charging.
 | AN000508A01 TLK 200 LTE Antenna (NA) |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
 | PMNN4578 Lithium Ion (Li-ion) 2500 mAh Battery |
| PMLN8782 TLK 200 Battery Door |
 | PMLN7128 Heavy-Duty Swivel Belt Clip |
| PMLN8795 TLK 200 Swivel Carry Holster |
 | PMLN6074 Nylon Wrist Strap |
| PMLN8569 6-Pocket Multi-Unit Charger |
 | PS000150A31 USB-A Wall Charger, 5V/1.5A, 240VAC (NA/Japan Plug). USB cable sold separately. |
 | PMKN4294 USB-C to USB-A Cable |
 | PMLN7159 Adjustable D-Style Earpiece with In-Line Microphone and Push-To-Talk, Black |
 | PMLN7189 Swivel Earpiece with In-Line Microphone and Push-To-Talk |
 | PMLN7156 Mag One Earbud with In-Line Microphone and Push-To-Talk, Black |
 | PMLN7157 2-Wire Surveillance Kit, Black |
 | PMLN7158 1-Wire Surveillance Kit, Black |
| PMLN8191 1-Wire Clear Tube Earpiece, 2.5mm Angled Single Pin |
| PMMN4125 RM250 Wired Remote Speaker Microphone, Large (IP67) |
| PMLN8740 EP910E Bluetooth Earpiece with Push-To-Talk |
 | PMLN8298 WP300 Wireless Bluetooth Control Pod with PTT Button. Requires compatible earpiece: PMLN8190, PMLN8077 or PMLN8125 |
| PMLN8401 WP300 Wireless Bluetooth Push-To-Talk Pod with Translucent Tube Earpiece |
| PMLN8332 Vehicle Mount for WP300 |
 | PMMN4127 WM500 Wireless Remote Speaker Microphone |
 | PMLN7560 Receive-Only Earpiece with Translucent Tube and Rubber Eartip for RM250 and WM500 RSMs |
 | PMLN8077 Single Pin Over-the-Ear Earpiece for WP300 Bluetooth Control Pod |
 | PMLN8125 Single Pin Short Cord Earpiece for WP300 Bluetooth Control Pod |
 | PMLN8190 1-Wire Clear Tube Earpiece, 2.5mm Straight Single Pin for WP300 Bluetooth Control Pod |
 | RLN6242 Low Noise Kit with Translucent Tube and 1 Clear Rubber Eartip |
 | 5080384F72 Replacement Foam Plugs for RLN6242. Noise Reduction = 24dB. Pack of 50 pairs. |
 | RLN6282 Replacement Standard Clear Rubber Eartip for RLN6242. Pack of 50. |
